Pneumatic fitting (BSPP, G thread with O-ring)

1. Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
2. The brass components are nickel plated brass and teflon-treatment is used on all tapered threads
3. Pneumatic fittings are equipped with a Gasket, Stainless steel grab-ring to grip nylon or PU tubing.
Pressure Range: 0~1.0 MPa ( 0~150 PSI)  Temperature Range: 0~60ºC (32~140ºF)

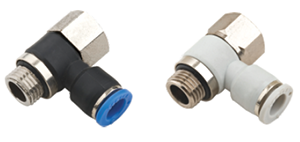

Female Banjo Pneumatic Fitting - PHF-G

pneumatic fitting

Metric Size - BSPP Thread (G Thread)

MODEL Tube Size Thread Size Description
PHF 04-G01 4mm G1/8" Female Banjo + O-ring 4mm G1/8"
PHF 04-G02 4mm G1/4" Female Banjo + O-ring 4mm G1/4"
PHF 6-G01 6mm G1/8" Female Banjo + O-ring 6mm G1/8"
PHF 6-G02 6mm G1/4" Female Banjo + O-ring 6mm G1/4"
PHF 6-G03 6mm G3/8" Female Banjo + O-ring 6mm G3/8"
PHF 6-G04 6mm G1/2" Female Banjo + O-ring 6mm G1/2"
PHF 8-G01 8mm G1/8" Female Banjo + O-ring 8mm G1/8"
PHF 8-G02 8mm G1/4" Female Banjo + O-ring 8mm G1/4"
PHF 8-G03 8mm G3/8" Female Banjo + O-ring 8mm G3/8"
PHF 8-G04 8mm G1/2" Female Banjo + O-ring 8mm G1/2"
PHF 10-G01 10mm G1/8" Female Banjo + O-ring 10mm G1/8"
PHF 10-G02 10mm G1/4" Female Banjo + O-ring 10mm G1/4"
PHF 10-G03 10mm G3/8" Female Banjo + O-ring 10mm G3/8"
PHF 10-G04 10mm G1/2" Female Banjo + O-ring 10mm G1/2"
PHF 12-G01 12mm G1/8" Female Banjo + O-ring 12mm G1/8"
PHF 12-G02 12mm G1/4" Female Banjo + O-ring 12mm G1/4"
PHF 12-G03 12mm G3/8" Female Banjo + O-ring 12mm G3/8"
PHF 12-G04 12mm G1/2" Female Banjo + O-ring 12mm G1/2"
PHF 14-G03 14mm G3/8" Female Banjo + O-ring 14mm G3/8"
PHF 14-G04 14mm G1/2" Female Banjo + O-ring 14mm G1/2"
PHF 16-G03 16mm G3/8" Female Banjo + O-ring 16mm G3/8"
PHF 16-G04 16mm G1/2" Female Banjo + O-ring 16mm G1/2"

Inch Size - BSPP Thread (G Thread)

MODEL Tube Size Thread Size Description
PHF 1/4-G01 1/4" G1/8" Female Banjo + O-ring 1/4" G1/8"
PHF 1/4-G02 1/4" G1/4" Female Banjo + O-ring 1/4" G1/4"
PHF 5/16-G01 5/16" G1/8" Female Banjo + O-ring 5/16" G1/8"
PHF 5/16-G02 5/16" G1/4" Female Banjo + O-ring 5/16" G1/4"
PHF 5/16-G03 5/16" G3/8" Female Banjo + O-ring 5/16" G3/8"
PHF 5/16-G04 5/16" G1/2" Female Banjo + O-ring 5/16" G1/2"
PHF 3/8-G01 3/8" G1/8" Female Banjo + O-ring 3/8" G1/8"
PHF 3/8-G02 3/8" G1/4" Female Banjo + O-ring 3/8" G1/4"
PHF 3/8-G03 3/8" G3/8" Female Banjo + O-ring 3/8" G3/8"
PHF 3/8-G04 3/8" G1/2" Female Banjo + O-ring 3/8" G1/2"
PHF 1/2-G02 1/2" G1/4" Female Banjo + O-ring 1/2" G1/4"
PHF 1/2-G03 1/2" G3/8" Female Banjo + O-ring 1/2" G3/8"
PHF 1/2-G04 1/2" G1/2" Female Banjo + O-ring 1/2" G1/2"


PHF-G Series Female Banjo Adaptor Push-in Pneumatic Fitting. Air Line Fittings Stud Coupling BSPP/ G thread are design with a releasable stainless steel grab-ring to grip nylon or polyurethane tubing. Release buttons allow for quick assembly and release, a true Push-to-Connect design. Nickel plated brass and sealant are used on all tapered threads and o-rings are on all parallel threads. Internal and external hexagons are standard.
